You can memorize every valve symbol in a handbook and still struggle with a real P&ID.
The reason is simple.
Real drawings are not built around isolated symbols. They show systems.
A tank feeds a pump. The pump sends flow through a check valve. A transmitter measures that flow. A controller sends a signal to a control valve. A heat exchanger changes process temperature. Pressure is measured downstream. Relief protection stands ready if the process exceeds its safe limit.
That is what this final part is about.
Not memorizing another valve.
Reading the entire process from one end to the other.
What We’ve Covered So Far
This series has built the skill in layers:
Part 1 — Valve Symbol Fundamentals
Part 2 — Gate, Globe, Ball, Butterfly & Other Manual Valves
Part 3 — Check Valves & Flow Direction
Part 4 — Control Valves & Actuators
Part 5 — Relief, Safety & Special Valves
Part 6 — Valve Tags, Instrument Bubbles & Control Loops
Part 7 — Normally Open, Normally Closed & Fail Positions
Now we’ll combine all of those ideas into one simplified system.

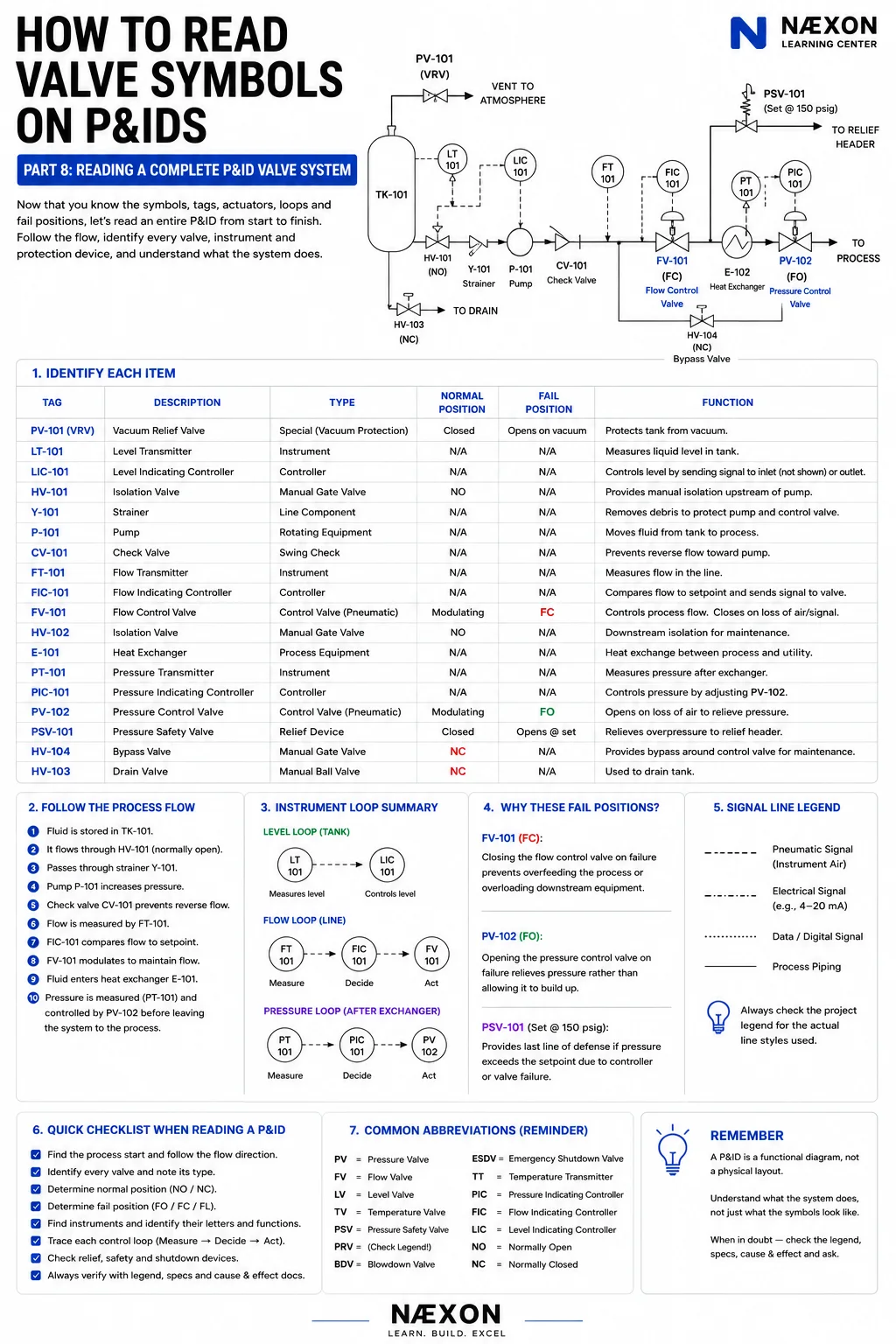

The Complete Example
Imagine the P&ID contains the following process:
TK-101
↓
HV-101
↓
Y-101
↓
P-101
↓
CV-101
↓
FT-101
↓
FV-101
↓
E-102
↓
PV-102
↓
Process
Around that main line, the drawing also shows:
LT-101
LIC-101
FIC-101
PT-101
PIC-101
PSV-101
HV-103 drain
HV-104 bypass
and a tank vent or vacuum-protection device.
At first glance, that’s a lot of information.
So don’t try to interpret everything simultaneously.
Start at the beginning.
Step 1 — Find the Process Starting Point
The first major piece of equipment is:
TK-101
This is our storage tank.
The tank contains process liquid that will be moved downstream.
Immediately ask:
What leaves the tank?
Follow the process line.
That line leads toward:
HV-101
Now we’ve found the start of the process path.
Step 2 — Check the Tank Instrumentation
Before leaving TK-101, look at the instruments connected to it.
Suppose we see:
LT-101
and:
LIC-101
From Part 6, we can decode those.
LT-101 — Level Transmitter
Measures liquid level in the tank.
LIC-101 — Level Indicating Controller
Receives the level measurement and performs a control function.
Now ask:
What does LIC-101 control?
Follow its signal line.
Depending on the system, it could ultimately control:
An inlet valve
An outlet valve
A pump
or another final control element.
Do not assume the controller acts on the nearest valve.
Follow the signal line.
Step 3 — Look for Tank Protection
The tank may also show a:
Vacuum relief valve
Breather valve
Pressure/vacuum vent
or similar protective device.
Why?
Because the tank’s vapor space must remain within its allowable pressure and vacuum limits.
If liquid is pumped out rapidly, the tank may experience falling internal pressure.
If liquid enters or temperature rises, vapor pressure may increase.
The protective device manages those conditions according to its design.
This connects directly to the special valves covered in Part 5.
Step 4 — Identify the First Manual Valve
The process line leaves TK-101 and reaches:
HV-101
Suppose HV-101 is marked:
NO
That means:
Normally Open
This makes sense for a pump suction isolation valve during normal operation.
Fluid needs to reach the pump.
But HV-101 still provides manual isolation when the equipment is taken out of service.
Remember:
NO does not mean the valve must always be open.
It describes its defined normal operating position.
Maintenance or shutdown conditions may intentionally require it to be closed.
Step 5 — Identify the Strainer
Next comes:
Y-101
This represents a strainer.
Its purpose is to catch debris before that material reaches downstream equipment.
Why place it before the pump?
Because foreign material can damage rotating equipment and downstream control components.
A P&ID reader shouldn’t just identify:
“That’s a strainer.”
Ask:
What is it protecting?
In this case, primarily the pump and downstream equipment.
Step 6 — Identify the Pump
Next:
P-101
This is the pump.
The pump adds energy to the liquid and moves it through the process.
Now ask:
What is immediately downstream of the pump?
You find:
CV-101
That’s an important clue.
Step 7 — Identify the Check Valve
CV-101
is our check valve.
From Part 3, we know its purpose:
Allow intended forward flow while resisting reverse flow.
Why would that matter after a pump?
Suppose downstream pressure remains high after P-101 shuts down.
Without reverse-flow protection, fluid could attempt to move backward toward the pump.
The check valve helps prevent that.
Now you’re not just recognizing the symbol.
You’re understanding why it is installed at that location.
Step 8 — Find the Flow Measurement
Continuing downstream, we encounter:
FT-101
Decode it:
F — Flow
T — Transmitter
So FT-101 measures process flow.
Follow the signal line.
It connects to:
FIC-101
Decode that:
F — Flow
I — Indicating
C — Controller
FIC-101 receives the measured flow and compares it with the desired setpoint.
Then follow the controller output.
It reaches:
FV-101
Now we have a complete loop:
FT-101 → FIC-101 → FV-101
Step 9 — Understand the Flow Control Loop
Let’s read the loop as a process.
FT-101 measures actual flow.
Suppose the desired flow is:
500 GPM
but FT-101 reports:
430 GPM
FIC-101 detects that flow is below the desired setpoint.
It changes its output.
FV-101 responds by changing position.
The process flow changes.
FT-101 measures the new result.
That cycle repeats continuously.
This is exactly the pattern introduced in Part 6:
Measure → Compare → Act → Measure Again
Step 10 — Read the Control Valve Fail Position
Suppose FV-101 is marked:
FC
That means:
Fail Closed
Now ask the question from Part 7:
Why would closing this valve be safer?
Maybe stopping flow prevents overfeeding downstream equipment.
Maybe it stops a hazardous process stream.
Maybe it prevents an upset from spreading to the next section of the plant.
The P&ID gives you the design intent.
Additional process documentation explains the full reason.
The key lesson is:
FC is not random notation.
It reflects a deliberate process-safety decision.
Step 11 — Identify the Heat Exchanger
Next the process reaches:
E-102
Under the project’s equipment-tagging convention, this represents a heat exchanger.
The process fluid passes through E-102 and exchanges heat with another medium.
That second medium might be:
Steam
Cooling water
Hot oil
Process fluid
Refrigerant
or another utility.
A P&ID may show both sides of the exchanger.
Follow each line separately.
Don’t assume the utility side behaves the same as the process side.
Step 12 — Find the Pressure Measurement
Downstream of the exchanger, suppose we find:
PT-101
Decode it:
P — Pressure
T — Transmitter
PT-101 measures pressure.
Its signal runs to:
PIC-101
Decode:
P — Pressure
I — Indicating
C — Controller
PIC-101 then controls:
PV-102
Now we have another loop:
PT-101 → PIC-101 → PV-102
This is the pressure-control loop.
Step 13 — Understand the Pressure Control Loop
Suppose PV-102 sits on the process outlet.
Opening it allows more material to leave.
Closing it restricts flow.
If vessel or line pressure rises, PIC-101 may command PV-102 to open farther.
If pressure falls, it may reduce the opening.
That allows the loop to influence upstream pressure.
Now suppose PV-102 is marked:
FO
Fail Open.
Why?
Because if the control system loses its operating energy, opening the outlet valve may help prevent pressure from building upstream.
This is a perfect example of why valve location matters.
A pressure-control valve located on an outlet may reasonably fail open.
A pressure-control valve located on an inlet might be designed to fail closed.
Same process variable.
Different location.
Different safe failure action.
Step 14 — Locate the Relief Protection
Now look at the line around the exchanger or downstream process.
You find:
PSV-101
The discharge runs toward:
Relief Header
From Part 5, we know:
PSV = Pressure Safety Valve
This is not part of routine pressure control.
PIC-101 and PV-102 manage normal operating pressure.
PSV-101 provides independent overpressure protection at its designed set conditions.
That distinction is extremely important.
Normal pressure control:
PT → PIC → PV
Overpressure protection:
PSV
One keeps the process where it should normally operate.
The other protects equipment if pressure exceeds the intended safe limit.
Control Does Not Replace Protection
This deserves its own section.
Suppose PV-102 fails.
Pressure continues rising.
The normal control system may no longer be capable of maintaining pressure.
That is why the system has independent relief protection.
A well-designed process often contains multiple layers:
Normal process control
↓
Alarms
↓
Shutdown actions
↓
Relief protection
These layers are not necessarily identical or interchangeable.
Understanding those layers is one of the most valuable things you can learn from a P&ID.
Step 15 — Identify the Drain Valve
Return to TK-101.
At the bottom, suppose we find:
HV-103
marked:
NC
The line goes to:
Drain
That immediately tells us:
Manual valve
Normally closed
Used to drain the tank or associated piping under approved conditions
Why normally closed?
Because under normal operation, we do not want process liquid leaving through the drain.
Simple.
But that small branch is still important during:
Maintenance
Cleaning
Shutdown
Deinventory
Hydrotesting
or other work.
Step 16 — Identify the Bypass
Now look around FV-101.
Suppose the drawing shows a bypass line containing:
HV-104
marked:
NC
The main process normally passes through FV-101.
The bypass remains closed.
During approved maintenance or certain operating conditions, the bypass may allow process flow around the control valve.
This creates a typical valve-station arrangement:
Upstream isolation
↓
Control valve
↓
Downstream isolation
with:
Normally closed bypass
around the station.
Once you’ve seen this arrangement several times, you’ll recognize it almost immediately.
Why the Bypass Is Normally Closed
If the bypass remained open during normal operation, process flow could travel around the control valve.
That would reduce the control valve’s ability to regulate the process.
So the typical intended configuration might be:
Main isolation valves — open
Control valve — modulating
Bypass valve — closed
But always confirm the actual system.
Some process arrangements intentionally operate differently.
Step 17 — Follow Every Branch
A common beginner mistake is following only the large horizontal line.
Don’t.
Branches often contain critical information.
Look for:
Drains
Vents
Bypasses
Sample connections
Instrument taps
Relief connections
Chemical injection
Utility connections
Tie-ins
A small branch may explain how the system is maintained or protected.
Follow everything.
Step 18 — Read the Line Numbers
Once you’re comfortable following equipment and valves, start paying attention to line designations.
A project’s line number may contain information such as:
Pipe size
Service code
Sequence number
Piping specification
Insulation requirement
or another project-defined classification.
For example, a line designation might tell you that you’re looking at:
6-inch hydrocarbon process piping
built to a particular piping specification.
The exact format varies heavily between projects.
Use the line-number legend.
Step 19 — Check Valve Sizes and Specifications Elsewhere
The P&ID tells you what valves exist and how they relate to the process.
It does not necessarily tell you every physical detail.
For actual installation or maintenance, you may need:
Valve list
Piping material specification
Line list
Isometric drawing
Vendor documentation
Equipment drawings
From those documents, you may determine:
Valve size
Pressure class
Material
Trim
End connection
Actuator model
Fail action
Testing requirements
and other details.
The P&ID gives you the map.
Other documents give you the construction details.
Step 20 — Understand the Signal Lines
Now look at the instrument connections.
You may see different line styles between:
FT-101
FIC-101
and:
FV-101
Those line styles may represent:
Pneumatic
Electrical
Digital
or other signal types.
If the project legend says a dashed line represents pneumatic signal, then you may be looking at an instrument-air control system.
Another line pattern might represent electrical 4–20 mA communication.
Don’t guess from generic memory.
Check the legend.
Step 21 — Separate Process Piping From Instrument Signals
This is another key beginner skill.
A solid process line carries the actual fluid.
A signal line carries information or control energy.
For example:
FT-101 – – – FIC-101
does not mean process fluid flows from the transmitter to the controller.
It means the transmitter communicates with the controller.
That distinction seems obvious after you’ve been reading P&IDs for a while.
But for a beginner, it is essential.
Step 22 — Ask What Happens If the Pump Stops
Now that we’ve identified everything, start testing your understanding.
Imagine:
P-101 stops.
What happens?
Process flow decreases.
CV-101 helps prevent downstream fluid from flowing backward through the pump.
FT-101 detects reduced or zero flow.
FIC-101 reacts according to its control logic.
FV-101 may change position.
Other alarms or shutdown functions may activate.
Now you’re thinking about system behavior.
That’s the next level of P&ID reading.
Step 23 — Ask What Happens If Flow Increases Too Much
Suppose flow rises above setpoint.
FT-101 detects the higher flow.
FIC-101 compares it with the desired value.
FV-101 adjusts position to reduce flow.
The transmitter detects the result.
Again:
Measure → Compare → Act
You should now be able to mentally animate the process from the static drawing.
Step 24 — Ask What Happens If Instrument Air Fails
This is where Part 7 becomes useful.
Suppose FV-101 is:
FC
and loses its actuator air.
It moves toward closed.
Suppose PV-102 is:
FO
and also loses air.
It moves toward open.
Why would designers want opposite actions?
Because the two valves protect the process in different ways.
Closing FV-101 stops additional upstream flow.
Opening PV-102 may allow downstream pressure to relieve through the normal process route.
Those two actions together may move the system toward a safer state.
Step 25 — Ask What Happens If Pressure Still Rises
Suppose:
FV-101 closes
and:
PV-102 opens
but pressure continues rising due to another failure.
Eventually the protected system may reach the set condition for:
PSV-101
PSV-101 opens according to its design and sends process material toward the relief system.
This shows how normal control, failure actions and relief protection work in layers.
Step 26 — Ask What Happens If the Tank Is Pumped Empty
Now move upstream.
If P-101 continues running and TK-101 level becomes too low, what happens?
That depends on the system.
LT-101 detects falling level.
The plant may have:
Low-level alarm
Low-low-level trip
Pump shutdown
or another protective function.
The P&ID may show those instruments.
If it doesn’t, related control or cause-and-effect documents may.
This is another good example of why you should search the whole equipment area, not just the process line.
Step 27 — Separate Normal Operation From Shutdown Conditions
During normal operation:
HV-101 may be open
HV-103 drain closed
HV-104 bypass closed
FV-101 modulating
PV-102 modulating
During maintenance:
Those positions may be intentionally changed.
During an emergency:
Actuated valves may move to their fail or shutdown positions.
So the P&ID can represent several different operational concepts simultaneously:
Normal position
Controlled position
Fail position
Shutdown action
Learning to separate those is critical.
Step 28 — Don’t Confuse Design Normal With Current Field Condition
This matters especially during turnarounds.
A valve marked:
NO
on the P&ID may currently be:
Closed and locked
because equipment is under maintenance.
A valve marked:
NC
may temporarily be open for draining.
A line may be blinded.
Temporary hoses may be connected.
Equipment may be removed.
So never walk into a live maintenance situation and assume field position based only on the design-normal drawing.
Use the approved work package, isolation documentation and site procedures.
For shutdown terminology, the Næxon Refinery Turnaround Dictionary: 100 Terms Every Shutdown Worker Should Know is a useful companion to this series.
A Fast Way to Read the Entire P&ID
When handed an unfamiliar drawing, use this sequence:
1. Find the main equipment.
Tank, vessel, pump, compressor, exchanger.
2. Find the process inlet.
Where does material enter?
3. Find the process outlet.
Where does it go?
4. Follow the flow arrows.
Establish direction.
5. Identify manual valves.
Gate? Ball? Globe? Butterfly?
6. Identify check valves.
Where is reverse flow being prevented?
7. Identify control valves.
FV? PV? LV? TV?
8. Follow their signal lines.
What transmitter and controller operate them?
9. Identify normal positions.
NO? NC?
10. Identify fail positions.
FO? FC? FL?
11. Look for relief and safety devices.
PSV? ESDV? BDV? VRV?
12. Follow drains, vents and bypasses.
Don’t ignore branches.
13. Read the line numbers.
What service and piping specification are involved?
14. Check the drawing legend.
Verify symbols and signal lines.
15. Ask what happens when something fails.
That last step transforms drawing reading into system understanding.
A Complete Walkthrough in One Sentence
Now let’s read our entire example without stopping:
Process liquid leaves TK-101 through normally open isolation valve HV-101, passes through Y-101 and P-101, flows through check valve CV-101, is measured by FT-101, controlled through FIC-101 and fail-closed FV-101, passes through heat exchanger E-102, has its pressure measured by PT-101 and controlled through PIC-101 and fail-open PV-102, while PSV-101 provides independent overpressure protection before the process continues downstream.
That’s the whole P&ID story.
What looked complicated at first is now a logical sequence.
What the Drawing Is Really Telling You
A good P&ID doesn’t simply tell you:
Where the valves are.
It tells you:
Where the process begins
Where it goes
How equipment is isolated
How reverse flow is prevented
What is measured
How the process is controlled
What valves do during failure
How pressure is protected
Where material can drain or vent
How systems interact
That is why P&ID literacy is valuable across so many industrial trades.
For Pipefitters
A pipefitter may use the P&ID to understand:
System boundaries
Valve locations
Equipment connections
Flow direction
Drains and vents
Bypasses
Tie-ins
Then use the isometric drawing for actual fabrication and installation dimensions.
For Welders
A welder may not operate the process, but understanding the P&ID can help explain:
What system they’re welding on
What equipment is nearby
Which line connects where
Whether the work is near relief, shutdown or process-control equipment
The drawing gives context to the weld.
For Instrument Technicians
Instrument technicians often live inside the parts of the P&ID beginners find most intimidating.
They need to understand:
Transmitters
Controllers
Switches
Solenoids
Positioners
Actuators
Signal lines
Control loops
Shutdown functions
This series provides the foundation for reading those relationships.
For Operators
Operators use P&IDs to understand how the process behaves.
They trace:
Flow paths
Control loops
Valve positions
Equipment interactions
Relief systems
Startup routes
Shutdown paths
An experienced operator often looks at the drawing and sees the process moving.
That’s the level of understanding you’re working toward.
For Maintenance and Turnaround Crews
During maintenance, the P&ID helps workers understand what they’re working around.
But it must be used alongside:
LOTO documentation
Isolation lists
Blind lists
Work packages
Redlines
Permits
Current field verification
and site-specific procedures.
A design drawing alone does not prove that a system is safe to open.
The Most Important Habit in This Entire Series
If you remember one method from all eight parts, make it this:
Follow the process.
Start at the equipment.
Find the line.
Find the arrow.
Identify the valves.
Read the tags.
Follow the signals.
Find the protective devices.
Then ask what happens next.
Do that every time.
Don’t Read Symbols. Read Relationships.
A gate valve tells you something.
A pump tells you something.
A flow transmitter tells you something.
But:
Tank → isolation valve → pump → check valve → flow transmitter → control valve → heat exchanger
tells you a story.
And:
FT → FIC → FV
tells you another story.
And:
PT → PIC → PV
tells you another.
And:
PSV → relief header
tells you how the equipment is protected.
The real skill is seeing how those stories fit together.
Final P&ID Reading Checklist
Before you finish analyzing a drawing, make sure you can answer:
Where does the process enter?
Where does it leave?
Which direction does it flow?
What major equipment does it pass through?
Which valves are manual?
Which valves are automatic?
Which valves prevent reverse flow?
What does each transmitter measure?
Which controller belongs to each loop?
What final control element responds?
Which valves are normally open or closed?
Which valves fail open, closed or last?
Where are the drains and vents?
Where are the bypasses?
What protects against overpressure?
Where does relieved material go?
What happens if power, instrument air or control signal is lost?
Does the project legend confirm your interpretation?
If you can answer those questions, you’re no longer just recognizing valve symbols.
You’re reading the P&ID.
Complete Series
How to Read Valve Symbols on P&IDs
Part 1 — Valve Symbol Fundamentals
Learn how valve symbols are built and how to approach an unfamiliar P&ID.
Part 2 — Gate, Globe, Ball, Butterfly & Other Manual Valves
Learn the common manual valve symbols and their basic functions.
Part 3 — Check Valves & Flow Direction
Learn how to identify reverse-flow protection and determine intended process direction.
Part 4 — Control Valves & Actuators
Learn pneumatic, electric and hydraulic valve operation.
Part 5 — Relief, Safety & Special Valves
Learn PSV, PRV, VRV, ESDV, BDV and pressure-protection concepts.
Part 6 — Valve Tags, Instrument Bubbles & Control Loops
Learn FT, FIC, FV, PT, PIC, PV and how instrument loops work.
Part 7 — Normally Open, Normally Closed & Fail Positions
Learn the difference between NO, NC, FO, FC and FL.
Part 8 — Reading a Complete P&ID Valve System
Put everything together and follow the complete process from equipment to equipment.
From Symbols to Systems
The goal was never to turn you into someone who can identify fifty little shapes on a drawing.
The goal was to teach you how to look at a P&ID and understand:
what the process is doing, why each valve is there, what controls it, and what happens when conditions change.
Once you start seeing those relationships, complicated drawings become easier.
Not because the P&ID changed.
Because the way you read it did.
